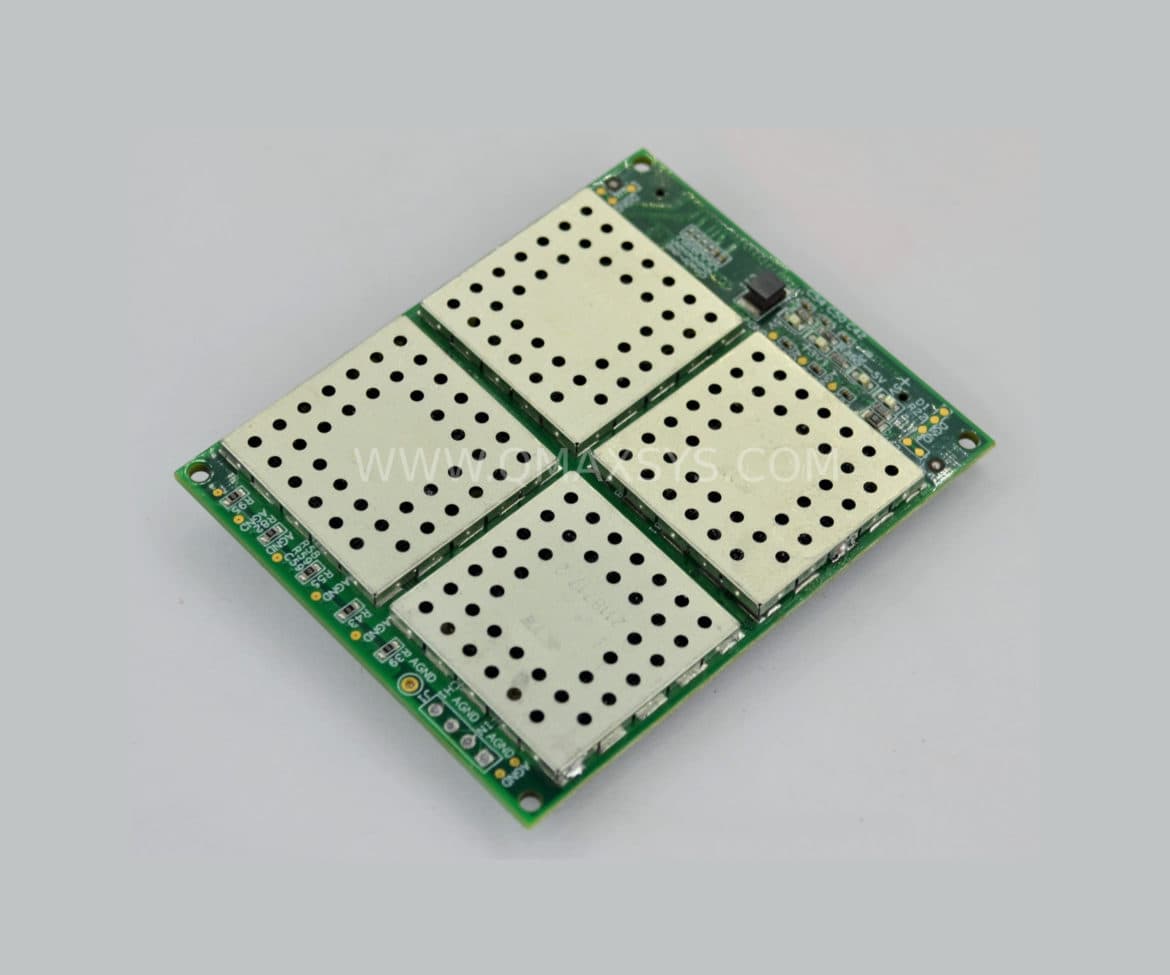

Qmax Systems has designed a High Precision, Ultra Low Noise ADC board for Critical Measurement Applications.
Project Highlights
- Texas Instruments ADC
- Analog Devices Digital Potentiometer
- High Sampling Rate – 65 MSPS
- High Resolution ADC – 14 Bit
- High Signal to Noise Ratio – 77 dBFS SNR at 65 MSPS
- Programmable Gain Amplifier
- Programmable Filter
Device Challenges
- Aerospace Application
- Size / Weight constraints
- Signal to Noise Ratio
- Mixed Signal PCB Design
- High Speed Digital / Highly Sensitive Analog
- Grounding / Shielding / Isolation
- Thermal Dissipation
Qmax scope
- Hardware Design
- Firmware Development
- PCB Design
- Enclosure Design
- Prototyping and Testing
- Signal, Power and Thermal Analysis
