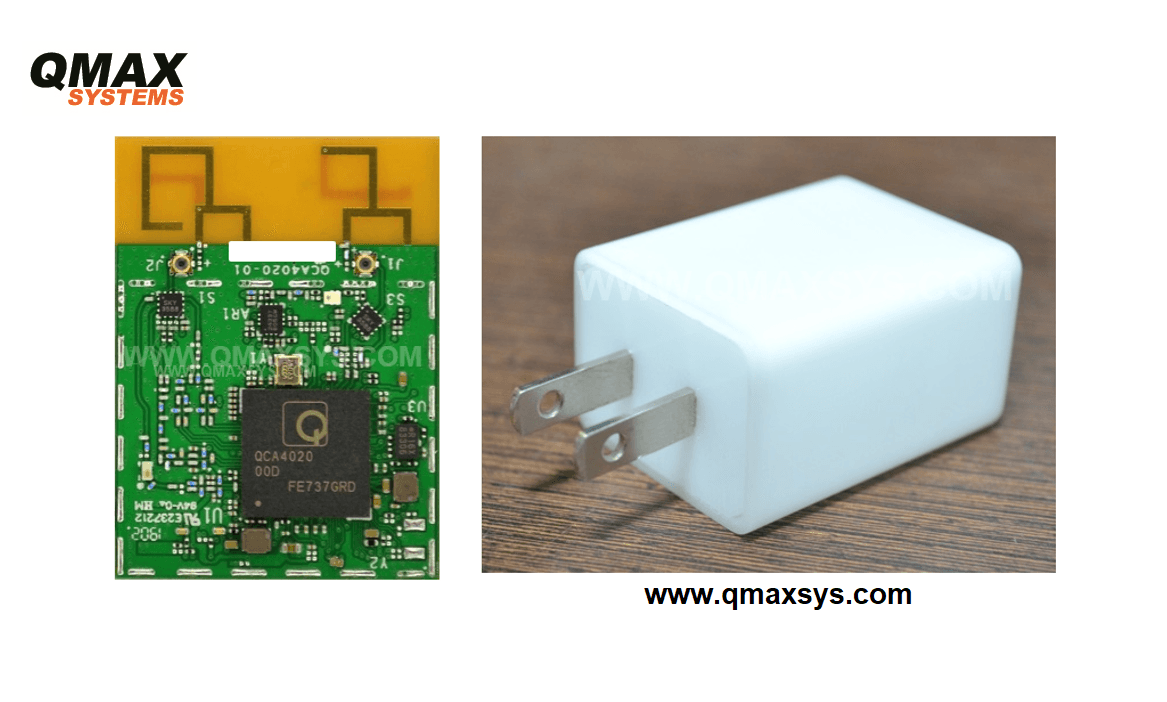

Qmax Systems has designed an IOT Micro-Gateway meant for Smart Home and other IOT applications. It connects to IOT edge devices through BLE/ZigBee/802.15.4 and to the Internet through Dual-Band Wi-Fi.
Project Highlights
- Qualcomm QCA4020 – Multi-Mode SoC
- Wi-Fi, BLE 5.0, ZigBee & Thread
- Advanced Hardware-based Security
- Directly Pluggable into Wall Socket
- In-Built Power Supply
- Compact Design: 42mm x 36mm x 27mm
- Alexa and Google Home Ready
Device Challenges
- Multi Radio PCB design
- High Voltage isolation
- RF Optimization
Qmax scope
- Hardware Design
- Firmware and Driver Development
- PCB Design
- Enclosure Design
- Prototyping and Testing
- RF Tuning and Calibration
- FCC, CE, RoHS Certification
