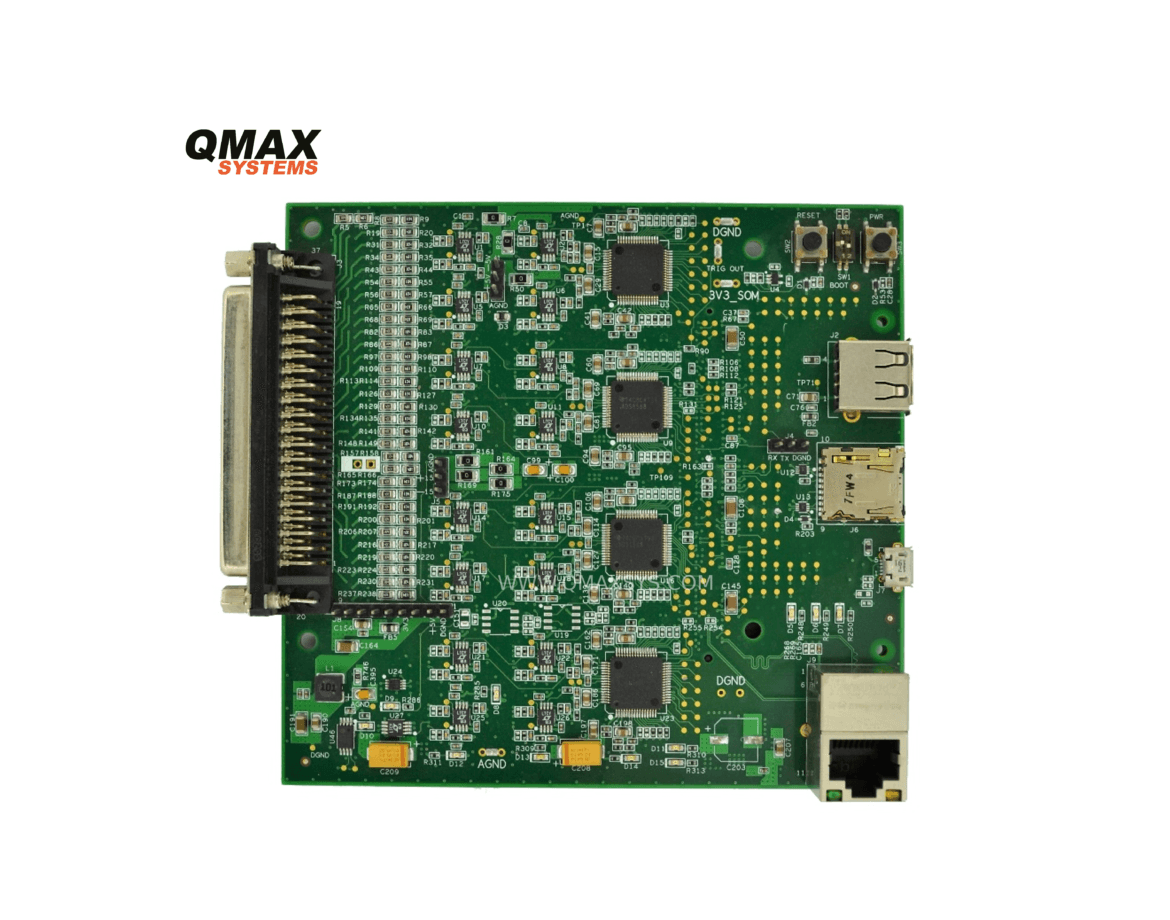

Qmax Systems has designed a 32-Channel High Precision ADC board for an Industrial application.
Project Highlights
- NXP iMX6 Application Processor
- 32 Channel, 16 Bit ADC
- 30 KSPS per Channel
- Simultaneous Data capture in all Channels
- Full utilization of all 4 processor cores
- Ultra Low Noise – SNR 90 dB
- Mixed Signal Design
- Linux Application
- Industrial Temperature rated
Device Challenges
- Ultra Low Noise requirement
- Mixed signal design
- 32 Channel high speed data processing
- Simultaneous Data capture in all Channels
Qmax scope
- Hardware Design
- Firmware Development
- Linux Drivers and Application Development
- PCB Design
- Prototyping and Testing
- Signal integrity Analysis
